Custom no type tea sealing machine brand forever

Model YF-180 power 300W (Kw) weight 36kg (kg)

Film packaging box type packaging materials production capacity of 10 (BPM)

The degree of automation for manual juice, tea, mineral water, pure water, carbonated drinks, milk, cream, hair care products, tea, wine, jelly for the industry of fruit juice, soy milk, jelly, milk, ice cream

After sales service one year warranty power 220V sealing speed 10 times /min

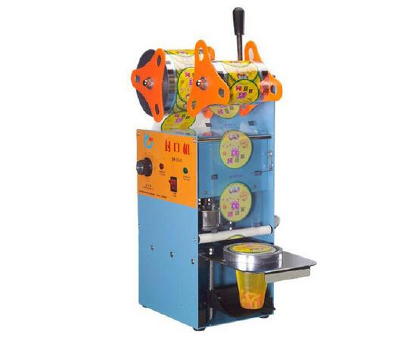

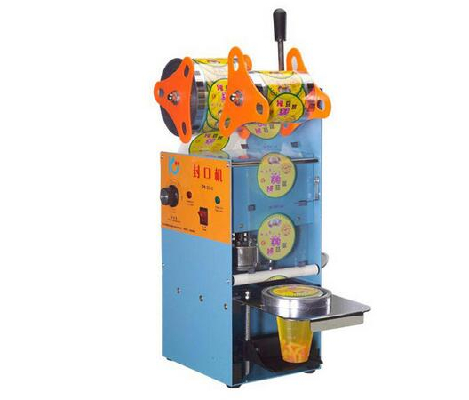

The power consumption is 100W use: semi automatic sealing machine is suitable for tea tea, wine, fruit juice, soy milk, jelly, milk, ice cream, snack foods and other food and beverage cup (box) automatic filling and capping.

Features: semi automatic tea sealing machine using the German FESTO pneumatic control system, a full set of Nissan programmable controller, photoelectric, temperature control, stepless speed regulation system.

Automatic completion of the cup, stamped, filling, sealing, marking, cutting film, check bottles, etc.. The packaging process no splash, no leakage.

Packaging products beautiful and generous. Packing: packing box: tea cups, plastic cups, paper boxes, plastic boxes, sealing film: plastic film, composite film, aluminum foil film;

Semi automatic tea sealing machine can be customized according to customer demand, can see the rotation of tea sealing film.

Operation step editor

1, turn on the power, turn on the power switch on the panel, the indicator light, the thermostat will be set to the scheduled temperature, when the green light. When the upper hot plate reaches the preset temperature, the red constant temperature indicator light is bright. After the sealing machine works, the electric heating device in the heating and heat preservation state constantly alternating, that is, the green and red light will continue to display alternately.

2, put the plastic cup under the mold slide, with the hand will be pushed to determine the position of the slide down, press down the handle of the sealing machine to the maximum stroke, holding 1-2 seconds. Then slowly raise the handle and push it to the original position.

3, out of the slide, remove the plastic cup, into the plastic cup, for the next cycle.

Technical parameter editor

Machine size: (MM) W * D * H 540 * 270 * 720315 * 206 * 550

Supply voltage: 400W 110/220V 300W 220/240V

Weight: 36kg

Sealing speed: PCS/HR 6 (BPM)

The box size: 180 x 230 x 50 (phi 75- Phi 95) (MM) 40 x 40 x 180 (MM)
